API 600 Gate Valve, ASTM A216 WCB, 6 Inch, 150 LB, RF

Key Specifications / Features

Model no. : 6G1RWCB08

Discover our high-quality DN150 Flanged Gate Valve with API 600 standards and OS & Y design. With a 6-inch, 150 LB rating, and RF connection, this WCB Body valve is equipped with 1Cr13 Trim, Handwheel, and NACE compliance for optimal performance. Upgrade your industrial operations with our premium valve solutions.

Detail Information

DN150 Flanged Gate Valve, API 600, OS & Y, 6 Inch, 150 LB, RF, WCB Body, 1Cr13 Trim, Handwheel, NACE

Valve Description:
1821009 Gate Valve 6G1RWCB08
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 6 Inch
Nominal class: 150 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Handwheel
Body Material: ASTM A216 WCB
Trim Material: 1Cr13+STL, No.8
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, NACE MR0175

Product Range:
Body material: Carbon Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator

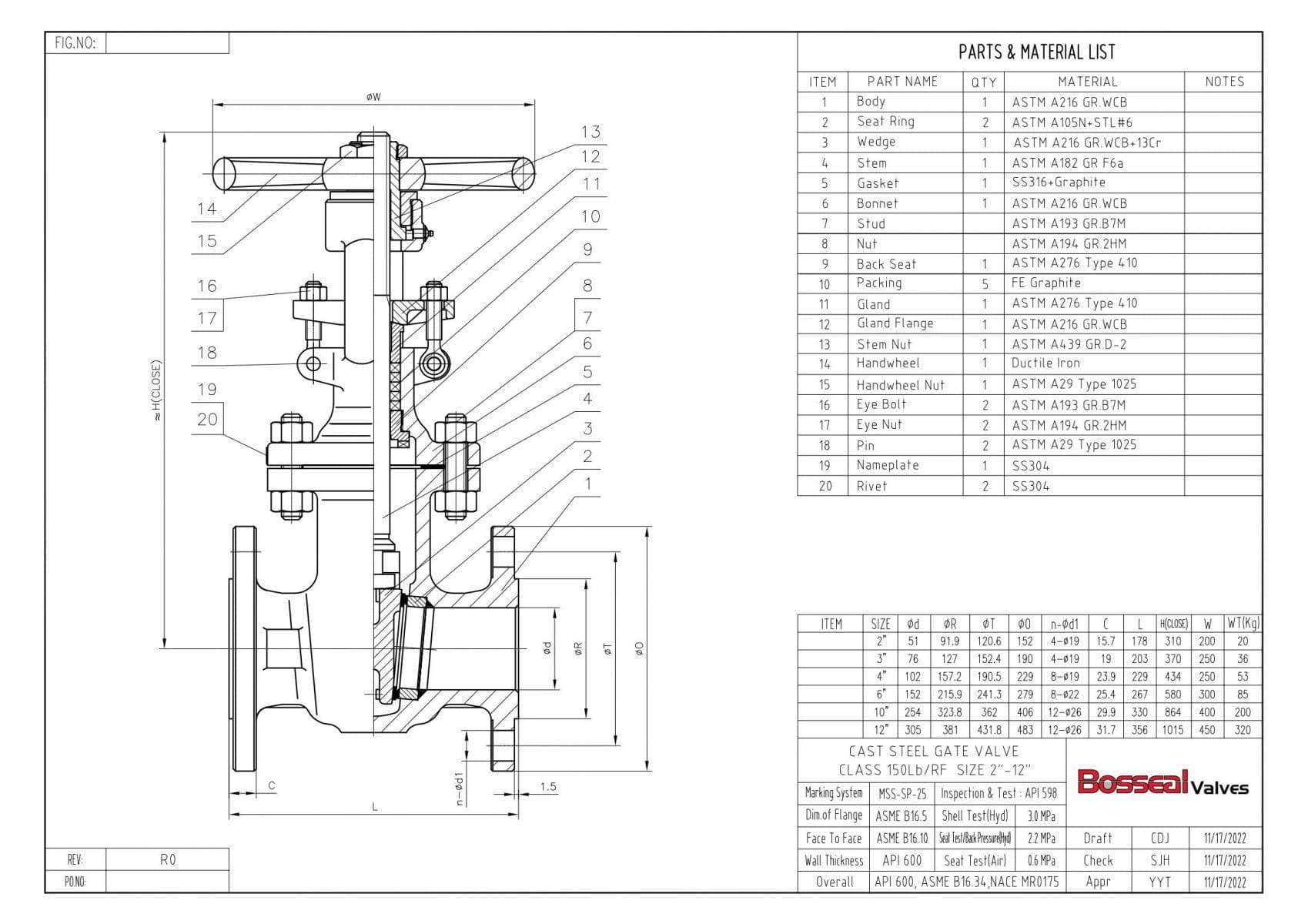

API 600 Gate Valve Tech Drawing
