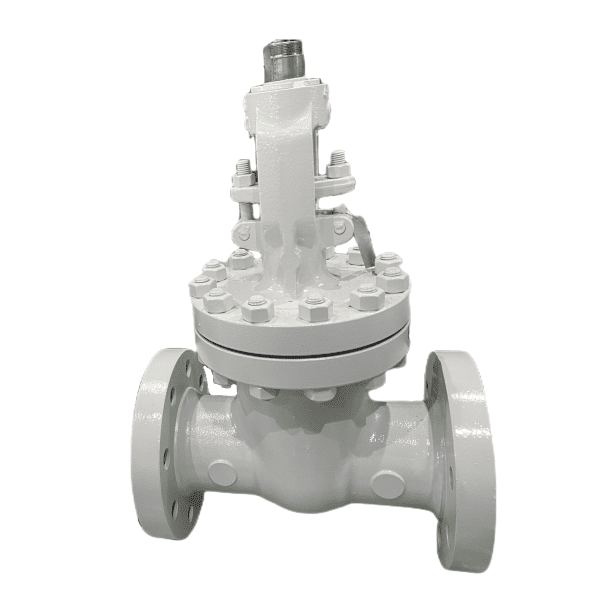

API 600 Gate Valve, 4 Inch, 600 LB, ASTM A216 WCB, RF

Key Specifications / Features

Model no. : 4G6RWCB08

This 4-inch, 600 LB flanged gate valve with an OS & Y design complies with API 600 standards. Its body is made of WCB material and features Trim 8. The handwheel allows for easy operation. This gate valve is designed with an RF connection.

Detail Information

600 LB Flanged Gate Valve, API 600, OS & Y, 4 inch, 600 LB, RF, WCB Body, Trim 8, Handwheel

Valve Description:
1821011 Gate Valve 4G6RWCB08
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 4 Inch
Nominal class: 600 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Handwheel
Body Material: ASTM A216 WCB
Trim Material: 1Cr13+STL, No.8
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, NACE MR0175

Product Range:
Body material: Carbon Steel, Stainless Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator

600 LB Flanged Gate Valve
