API 600, API 603 Gate Valve, 16 Inch, 300 LB, ASTM A351 CF8

Name: API 600, API 603 Gate Valve, 16 Inch, 300 LB, ASTM A351 CF8
SKU: 16g3rcf820
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 16G3RCF820

Looking for a reliable flanged gate valve provider? We offer top-quality gate valves that meet industry standards such as API 600 and API 603. Our valves are designed for 16-inch pipes with a Class 300 LB rating. They have a DN400 size and PN50 pressure rating, ensuring optimal performance. Made from ASTM A351 CF8 material, our valves feature a bolted bonnet and an OS & Y design. They come with RF ends and SS 304 trim for enhanced durability. Trust our expertise for all your gate valve needs.

Request a quote

Tags:

API 600 Gate Valve

API 603 Gate Valve

16 Inch Gate Valve

Detail Information

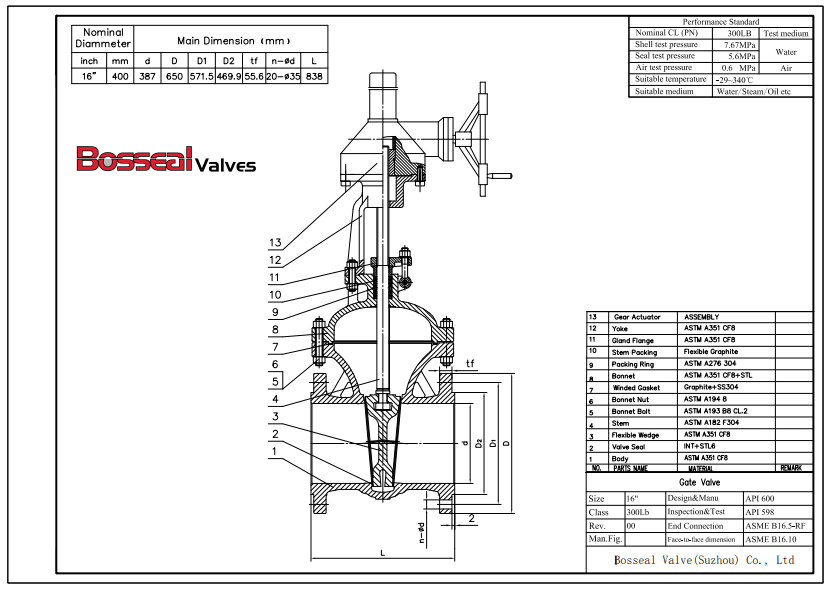

16 inch Class 300 Flanged Gate Valve, API 600, OS & Y, RF, A351 CF8 Body, SS 304 Trim, Gear Operation

Valve Description:
1821015 Gate Valve 16G3RCF820
Design Standard: API 600, API 603
Structure: Bolted Bonnet
Nominal size: 16 Inch
Nominal class: 300 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Gear
Body Material: ASTM A351 CF8
Trim Material: SS304 + STL, No.20
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat

Product Range:
Body material: Carbon Steel, Stainless Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator

Next: ASTM A352 LCB Slab Gate Valve, 6 Inch, 2500 LB, API 6D, RTJ

Previous: Resilient Seated Gate Valve with By-pass, DN700, PN16, GGG50

Similar Products

MONEL 400 ASTM A494 M35-1 Gate Valve, 2 Inch, 300 LB, API600

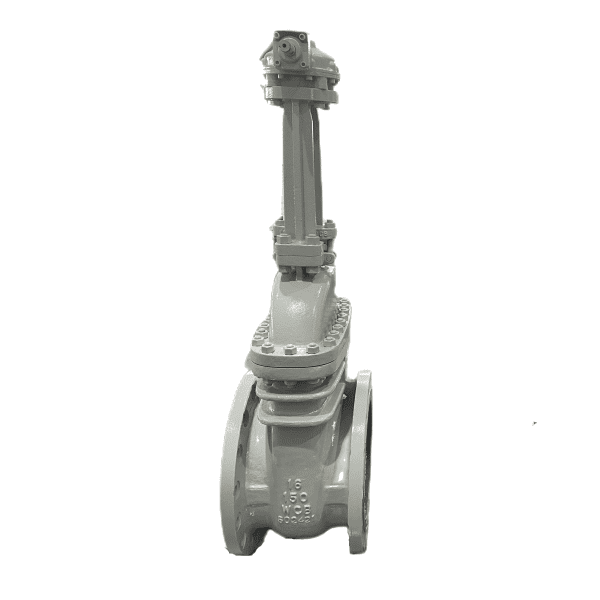

Bolted Bonnet Gate Valve, API 600, WCB, 16 Inch, 150 LB
