API 594 Swing Check Valve, ASTM A351 CF8, ANSI 600, 14 Inch

Key Specifications / Features

Model no. : 1841070

The 1841070 Swing Check Valve is a reliable and efficient solution, designed according to API 594, API 6D, and BS 1868 standards. This Class 600 LB valve features a nominal size of 14 Inch (DN 350) with a bolted bonnet for secure operation. Made from durable stainless steel ASTM A351 CF8, it offers a full opening design for optimal performance. The valve includes gear operation and RF flanged end connections for easy installation. With trim materials such as ASTM A182 F6A, F304, F316, F51, F53, and F55, it ensures long-lasting durability. Tested to API 598 standards, it is ideal for demanding industrial applications.


Detail Information

API 594 Swing Check Valve, 14 Inch/DN350, Class 600 LB, Stainless Steel, ASTM A351 CF8, Full Opening.

Valve Description

1841070 Swing Check Valve
Key Features: Full Opening Design Available, Bolted Bonnet, Gear Design Available
Design Standard: API 594, API 6D, BS 1868
Nominal Size: 14 Inch, DN350
Nominal Class: 600 LB
Body Material: Stainless Steel, ASTM A351 CF8, CF8M, C95800 Alloy, ASTM A995 4A, 5A, ASTM A216 WCB, ASTM A352 LCB.
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55
Structure: Bolted Bonnet
Operation: Gear
Bore Type: Standard Bore (BS 1868, API 594), Full Bore (API 6D)
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: Flanged RF

Product Offering

Body Materials: Stainless Steel, Alloy Steel, Carbon Steel, Aluminium-bronze
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: CLass 150-2500 LB
End Connections: Raised Face (RF), Ring-Type Joint (RTJ), Butt Weld (BW).
Operation: Not Applicable (Manual or actuated available for special request)
Working Temperature: -196°C to +450°C

Nickname*:
E-mail*:
Rate*:
Comments*:

Next: ASTM B148 C95800 Check Valves, 16 IN, 600 LB, DN400, API 6D

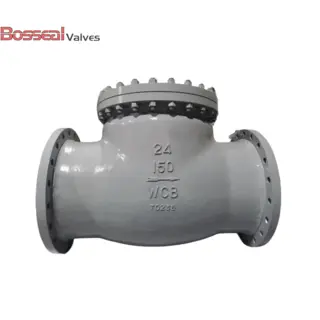

Previous: ASTM A216 WCB Swing Check Valve, 24 Inch, 150 LB, API 594
