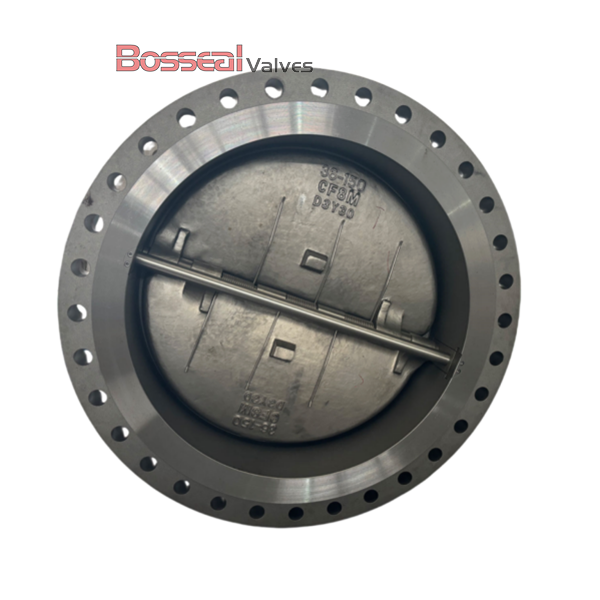

API 594 Dual Plate Check Valve, 18 IN, 150 LB, ASTM A351 CF8

Name: API 594 Dual Plate Check Valve, 18 IN, 150 LB, ASTM A351 CF8
SKU: 1842028
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1842028

We specialize in manufacturing API 594 dual plate check valves, designed as non-return valves. Our 18-inch, Class 150 LB valves are made from ASTM A351 CF8 stainless steel, ensuring durability and resistance to corrosion. These valves feature a compact design and are spring-loaded with wafer flanged ends for easy installation. Key Features: Compact Design: Saves space and simplifies installation. Independent Spring: Enhances performance and reliability. Optional Seats: Available in both soft and metal seat options to meet various application needs. Slim Plate Design: Reduces pressure drop and enhances flow efficiency. Our dual plate check valves are ideal for a variety of industrial applications, providing reliable, long-lasting performance.

Request a quote

Tags:

API 594 Check Valve

18 Inch Check Valve

Class 150 LB Check Valve

Detail Information

API 594 Dual Plate Check Valve, 18 Inch, CL 150 LB, A351 CF8 Body, Wafer, Flanged Ends.

Valve Description

1842028 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring Loaded, Dual Plate
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Nominal Size: 18 Inch
Nominal Class: Class 150 LB
Body Material: ASTM A351 CF8, ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 2500 LB
End Connection: Wafer, Lug, Flanged-RF, RTJ
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)

next: ASTM A352 LCB Dual Plate Check Valve, 20 IN, CL150, API 594

previous: ASTM A351 CF8M Dual Plate Check Valve, API 594, 6 IN, 150 LB

Products Related to

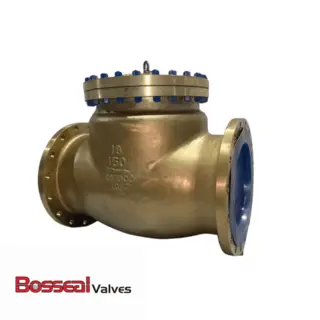

ASTM B148 C95800 Swing Check Valve, 18 IN, CL 150, API 594, RF
