Key Specifications / Features
Model no. : BTV-187302036
We are a reliable China-based supplier of wafer butterfly valves engineered to meet API 609 and BS EN 593 standards. Featuring a rugged aluminum bronze ASTM B148 C95800 body and disc, these 28-inch valves are built for Class 300 LB pressure applications, ensuring exceptional strength and corrosion resistance. Designed for efficient flow control, each valve offers the choice of lever or gear operation for smooth and precise handling. Ideal for use in marine, offshore, and industrial systems, our valves deliver long-lasting performance in the most challenging environments.
Valve Description:

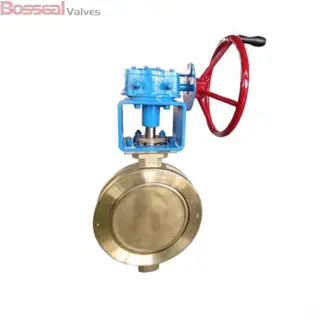

187302036 High Performance Butterfly Valve
Design Standard: API 609 Category B, BS EN 593
Nominal Size: 28 Inch, DN700
Nominal Class: Class 300 LB
Body Material: ASTM B148 C95800
End Connection: Wafer/Lug/Flanged
Operation: Lever/Gear
Trim Material: ASTM B148 C95800
Structure: Double Offset, Double Eccentric
Seat: RPTFE, PPL
Seat Type: Soft Seat
Face to Face: API 609, BS EN 593
Test and Inspection: API 598, API 609
Key Features: Long working life for frequent operation(million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available, Aluminium bronze for sea water service
Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer/Lug/Flanged
Working Temperature: -26°C - +120°C (180°C for PPL Seat)
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
