Aluminum Bronze Lug Butterfly Valve, 8 IN, 300 LB, Flanged

Key Specifications / Features

Model no. : BTV-187302027

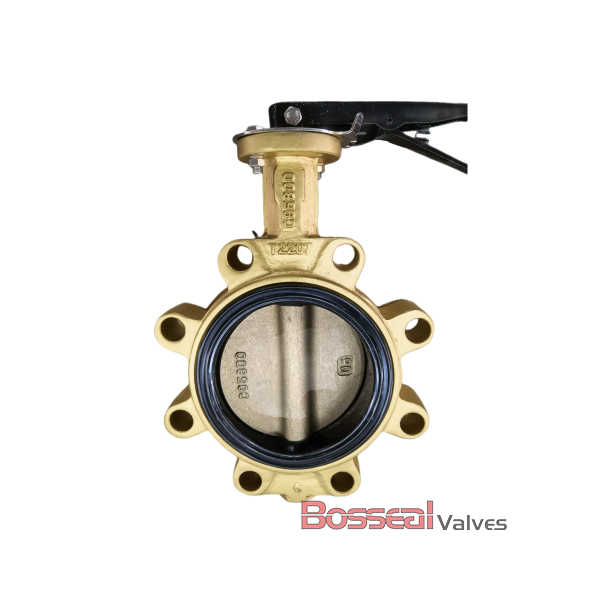

We are a professional lug butterfly valve factory in China, offering high-quality valves designed to API 609 standards. This 8-inch (DN200) valve features a corrosion-resistant aluminum bronze body and disc made from ASTM B148 C95800, ideal for marine and harsh industrial applications. With a pressure rating of Class 300 LB and PN50, it ensures reliable performance in demanding systems. The valve is equipped with flanged ends for secure installation and operates smoothly with a manual lever. A dependable choice for precise flow control in corrosive and high-pressure environments.

Detail Information

Valve Description:
187302027 High Performance Butterfly Valve
Design Standard: API 609 Category B, BS EN 593
Structure: Double Offset, Double Eccentric
Nominal Size: 8 Inch, DN200
Nominal Class: 300 LB
Seat Type: Soft Seat
End Connection: Wafer/Lug/Flanged
Operation: Lever/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Seat: RPTFE, PPL
Face to Face: API 609, BS EN 593
Test and Inspection: API 598, API 609
Key Features: Long working life for frequent operation(million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available, Aluminium bronze for sea water service


Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer/Lug/Flanged
Working Temperature: -26°C - +120°C (180°C for PPL Seat)
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
