Key Specifications / Features
Model no. : BTV-187302010
As a leading aluminum bronze butterfly valve manufacturer in China, we offer high-performance valves built to API 609 Category B and BS EN 593 standards. Featuring an ASTM B148 C95800 aluminum bronze body, these 16-inch (DN400) valves provide outstanding corrosion resistance and durability. Rated for Class 150 LB, they are designed with a soft seat for enhanced sealing and efficient flow control. The valves are available with lever or gear operation, ensuring ease of use in various industrial applications, including marine, oil, and gas. Our butterfly valves are engineered for long-lasting, reliable performance in demanding environments.
Valve Description:

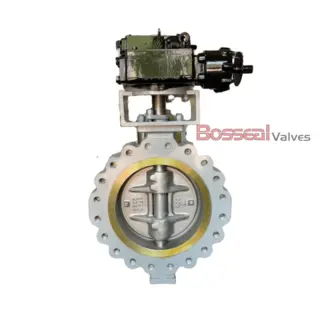

187302010 High Performance Butterfly Valve
Design Standard: API 609 Category B, BS EN 593
Structure: Double Offset, Double Eccentric
Nominal Size: 16 Inch, DN400
Nominal Class: 150 LB
Seat Type: Soft Seat
End Connection: Wafer/Lug/Flanged
Operation: Lever/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Seat: RPTFE, PPL
Face to Face: API 609, BS EN 593
Test and Inspection: API 598, API 609
Key Features:
Extended service life for frequent operation (millions of cycles).
Low torque for easy operation.
Replaceable seat for convenient maintenance.
Superior tight sealing for enhanced performance.
Excellent control characteristics for precise flow regulation.
Bi-directional sealing under full pressure for reliable operation.
Fire-safe seat option available for added safety.
Corrosion-resistant aluminum bronze, ideal for seawater applications.
Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer/Lug/Flanged
Working Temperature: -26°C - +120°C (180°C for PPL Seat)
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
