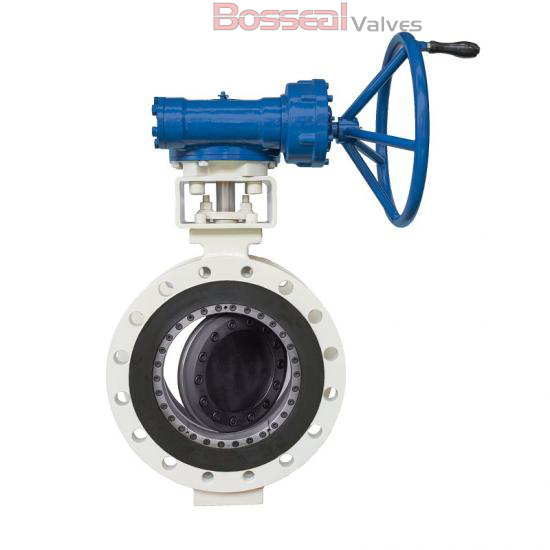

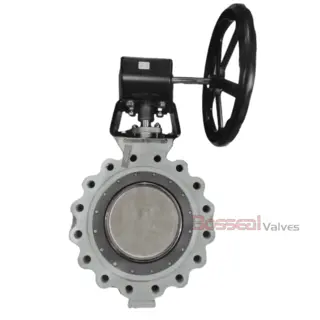

Aluminum Bronze Butterfly Valve, RPTFE Seat, CL300, 20 IN

Key Specifications / Features

Model no. : 1862233

As a leading manufacturer of double-offset butterfly valves in China, we provide high-quality solutions that meet API 609 B and EN 593 standards. Our valves, crafted from ASTM B148 C95800 material, feature a 20-inch size and a Class 300 LB rating. With a double eccentric design, 17-4PH stem, and lug-type ends, these valves are ideal for pipelines requiring frequent open and close operations. They offer reliable performance for isolation and regulating applications, ensuring durability and efficient control in demanding environments.

Detail Information

RPTFE Seated Butterfly Valve, Double Offset, 20 Inch/DN500, Class 300 LB, Gear Operation.

Valve Description

1862233 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM B148 C95800, Titanium, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 4A, ASTM A351 CF8.
Nominal Size: 20 Inch, DN500
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A, ASTM A351 CF8, ASTM B148 C95800, Titanium
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Lug
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 - 48 Inches (DN15 - DN1200)
Pressure Range: Class 150 - 300 LBs
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Seat Type: PTFE, RPTFE, PPL(for higher temperature), RPTF
