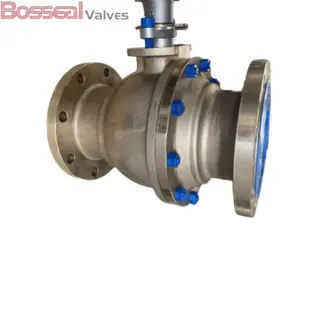

Aluminum Bronze Ball Valves, ASME B16.34, 8 Inch, 150 LB

Key Specifications / Features

Model no. : BV-187301006

As a trusted ASTM B148 C95800 ball valve supplier, we offer high-quality aluminum bronze valves designed to meet ASME B16.34 standards. This 8-inch ball valve (DN200) features a Class 150 LB pressure rating, PN20, and RF flanged ends for secure sealing and easy installation. The B150 C63200 trim ensures exceptional durability, while the RPTFE seat provides reliable sealing performance. Built for corrosion resistance and long-lasting reliability, our ball valves are ideal for demanding industrial applications. Count on our expertise for precision-engineered valves that deliver superior performance and strength.

Detail Information

Valve Description:
187301006 Aluminum Bronze Ball Valve
Design Standard: ASME B16.34, API 6D, BS 5351
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 8 Inch, DN200
Nominal Class: Class 150 LB
Operation: Gear
Body Material: Aluminium Bronze ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminum Bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: RF, FF
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
