Al-Bronze Flanged Ball Valves, ASME B16.34, 42 Inch, 300 LB

Name: Al-Bronze Flanged Ball Valves, ASME B16.34, 42 Inch, 300 LB
SKU: bv-187301041
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : BV-187301041

We are a leading aluminum bronze ball valve supplier, offering high-performance solutions designed to ASME B16.34 and API 6D standards. Our 42-inch, Class 300 LB ball valve features a robust ASTM B148 C95800 aluminum bronze body, ensuring superior corrosion resistance, especially for marine and industrial applications. Designed with a bolted bonnet for enhanced durability and easy maintenance, this valve also incorporates gear operation for precise control. Available with both flat face (FF) and raised face (RF) flanged ends, it is ideal for high-pressure applications. As a trusted supplier, we deliver durable, high-quality ball valves for demanding environments.

Request a quote

Tags:

ASME B16.34 Ball Valve

Al-Bronze Ball Valve

42 Inch Ball Valve

Detail Information

Valve Description:
187301041 Aluminium Bronze Ball Valve
Design Standard: API 6D, BS 5351, ASME B16.34
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 42 Inch
Nominal Class: 300 LB
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Operation: Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block & Bleed(DBB), Anti-Static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: RF, FF
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

Next: Aluminium Bronze Ball Valve, 48 IN, CL300, C63200 Trim, RF

Previous: Aluminium Bronze Ball Valves, B148 C95800, 40 Inch, CL300 LB

Similar Products

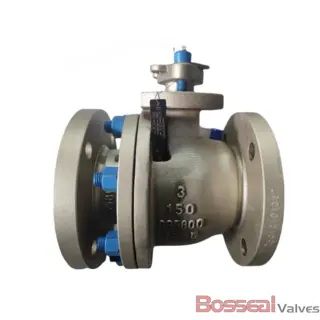

Bolted Bonnet Ball Valves, Bronze C95800, C63200 Trim, 26 IN
