Key Specifications / Features

Get a top-quality Al-bronze Dual Plate Check Valve from a trusted supplier. Our valve features ASTM B148 C95800 Body & Disc, Metal Seat, 6 Inch size, 150 LB pressure rating, API 594 compliance, X-750 Spring Return, and Lug Connection End. Order now for reliable performance and durability.


Detail Information

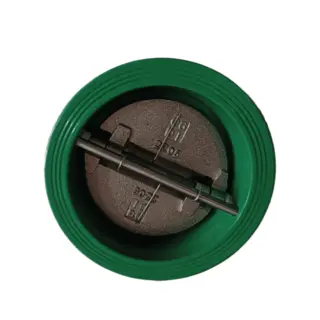

API 594 Dual Plate Check Valve, 6 inch, 150 LB, LUG, AL-BRONZE B148 C95800 body & Disc, Metal Seat

Valve Description:
1842014 Dual Plate Check Valve 6SBN1LC958
Design Standard: API 594
Structure: Dual Plate spring return
Nominal size: 6 Inch
Nominal class: 150 LB
End Connection: LUG
Operation: /
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800 disc, X-750 Spring
Face to face: API 594
Test and inspection: API 598
Key Features: Retainerless Design, HIgh flow efficiency, Low noise, Short face-to-face length, for offshore, FPSO, seawater

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -46℃ - +200℃
Operation: /
