Key Specifications / Features
Discover our top-quality 6-inch 150 LB Ball Valve crafted at our factory. Engineered to precision with DN150 specifications and PN20 ratings, this Trunnion Mounted valve meets API 6D and BS 5351 standards. Constructed with durable materials including ASTM A105N and ASTM A350 LF2, its 3pcs Body design ensures reliability. Featuring an RPTFE Seat for enhanced sealing and Gear Operation for ease of use, this RF valve is ideal for various industrial applications.
Detail Information

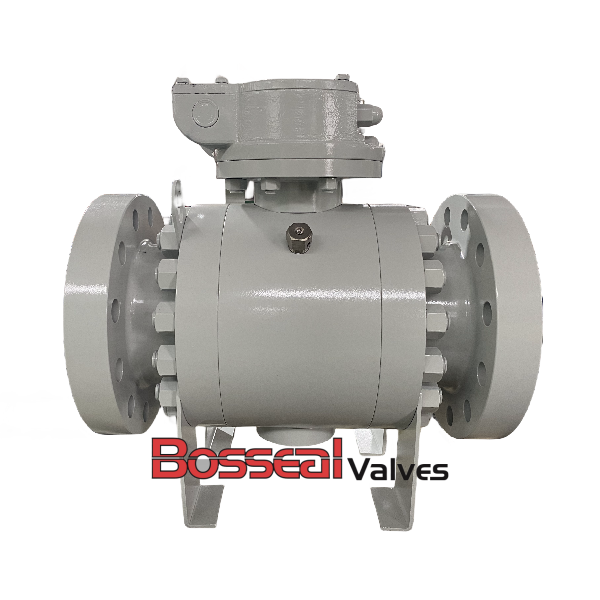

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 6 INCH, 150 LB, RF, RPTFE seat, Gear Operation
Valve Description:
1811075 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 6 Inch
Nominal class: 150 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N, ASTM A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
