Key Specifications / Features

Model no. : 1811088

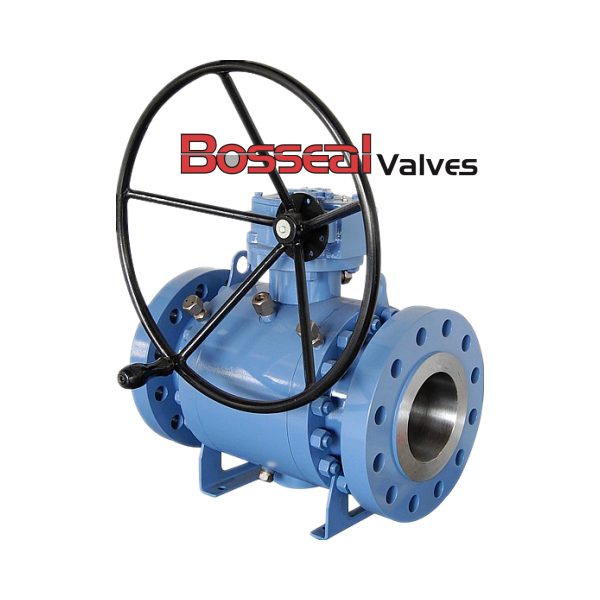

Discover our premium 36-inch trunnion ball valve, meticulously crafted for excellence. This valve, with a DN900 size, CL150 pressure rating, and PN20 pressure class, features a 3-piece forged body design, meeting API 6D standards. Constructed from high-grade materials including ASTM A105N and ASTM A350 LF2, and boasting DEVLON seats, this valve ensures durability and superior performance. With its RF configuration and adherence to BS 5351 standards, our trunnion ball valve guarantees reliable operation in various industrial applications.


Detail Information

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 36 INCH, 150 LB, RF, DEVLON seat

Valve Description:
1811088 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 36 Inch
Nominal class: 150 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N, ASTM A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
