3-Piece Manual Ball Valves, ASTM A105N, 40 IN, 2500 LB, BB

Key Specifications / Features

Model no. : 1811194

We are a renowned manufacturer of API 6D trunnion ball valves from China, built to BS 5351 standards. Our valves are made from carbon steel ASTM A105N and feature a 40-inch size with a 2500 LB rating. They include a bolted bonnet, soft seat, and RTJ flanged connections. For enhanced safety, our valves come with an anti-blowout stem to prevent stem ejection under pressure. Additionally, the optional Double Isolation & Bleed (DIB) functionality provides two seating surfaces for superior isolation and safety.

Detail Information

ASTM A105N Trunnion Ball Valve, 40 Inch, Class 2500 LB, Bolted Bonnet, RTJ Flanged.

Valve Description

1811194 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 40 Inch
Nominal Class: 2500 LB, PN420
Bore Type: Full Bore or Reduced Bore
Operation: Lever/Gear
Body Material: ASTM A105N or ASTM A350 LF2
End Connection: RTJ Flanged
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire-Safe Design, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission (Optional), DIB (Optional).
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Seat Insert: RPTFE, DEVLON, NYLON, PEEK

Product Range

Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
Working temperature: -26°C - +150°C
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End connection: RF, RTJ, BW, HUB
Body Structures: End Entry, Top Entry(easy for on-line maintenance)
Body Types: 2pc split body, 3pcs split body
Body&Bonnet Connection: Bolted Bonnet, Full Welded Bonnet(for Hazardous service need longer working life with less leakage point)

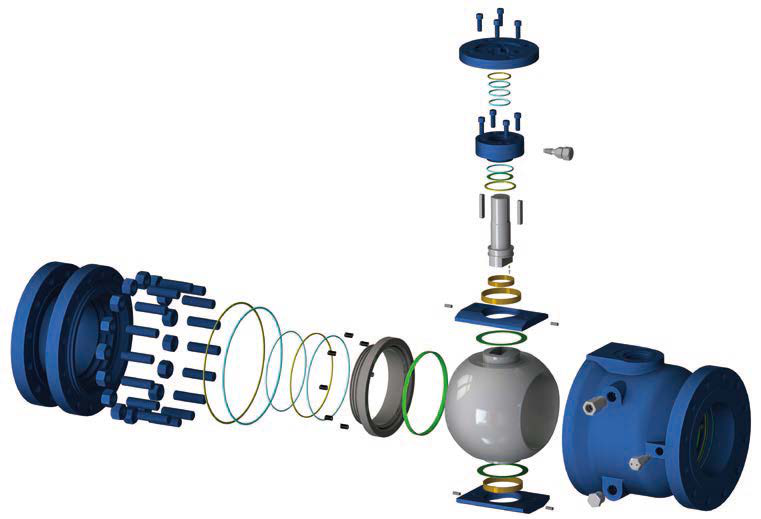

2pc Casting Body Side Entry Ball Valve

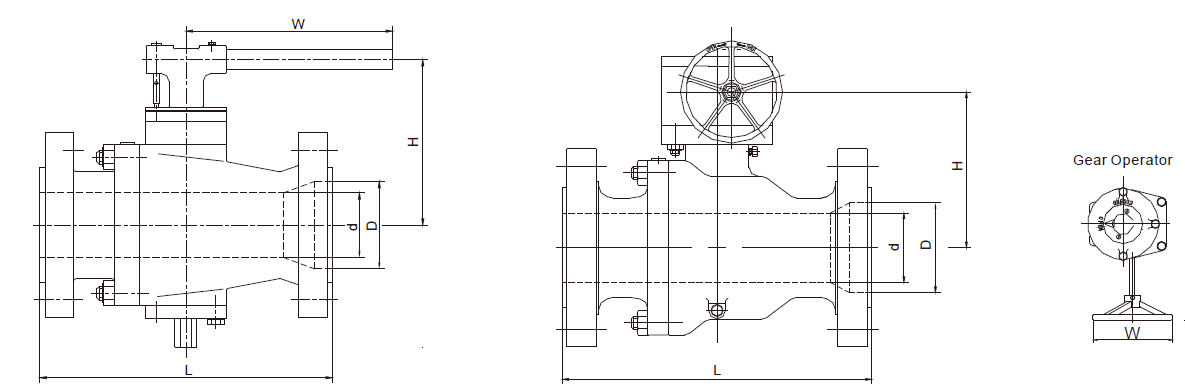

2pc Casting Body Side Entry Ball Valve




2pc Casting Body Side Entry Ball Valve
