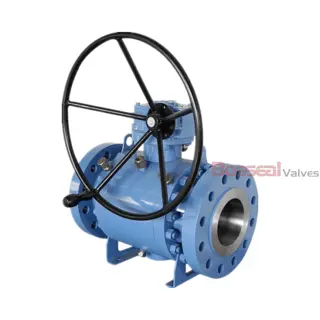

3-piece Bolted Ball Valve, ASTM A105N, 20 IN, 2500 LB, RTJ

Key Specifications / Features

Model no. : 1811187

We are a premier factory in China specializing in ASTM A350 LF2 trunnion ball valves. Our 20-inch (DN500) valves feature a robust 3-piece bolted body and are built to API 6D and BS 5351 standards, using durable ASTM A105N material. Rated for 2500 LB, these valves have a side entry design and RTJ flanged ends for secure, leak-proof connections. They are equipped with an anti-blowout stem, emergency sealant injection, and low emission technology, ensuring reliable performance and safety in high-pressure industrial applications.

Detail Information

BS 5351 Trunnion Ball Valve, API 6D, 20 Inch, CL 2500 LB, 3pcs Bolted Body, Side Entry.

Valve Description

1811187 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Body Material: Carbon Steel ASTM A105N or ASTM A350 LF2
Nominal Size: 20 Inch, DN500
Nominal Class: CL 2500 LB, PN420
Structure: 3pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Test and inspection: API 598, API 6D
Face to Face: ASME B16.10
End Connection: RTJ Flanged
Bore Type: Full Bore or Reduced Bore
Operation: Lever/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire-Safe Design, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission (Optional), DIB (Optional).

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C to +150°C
End Connection: RF, RTJ, BW, Hub
