3 Inch Bronze Gate Valves, MSS SP-80, ASTM B62, Class 200 LB

Name: 3 Inch Bronze Gate Valves, MSS SP-80, ASTM B62, Class 200 LB
SKU: 1876029
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1876029

As a leading MSS SP-80 bronze gate valve factory in China, we manufacture high-quality valves with an ASTM B62 C83600 bronze body for durability and corrosion resistance. This 3-inch (DN80) valve is rated for Class 200 LB and features a non-rising stem design for compact installations. Equipped with a threaded bonnet for easy maintenance and a standard bore for efficient flow, this valve is engineered to meet the demands of various industrial applications. Our valves offer reliable performance and are designed for long-lasting service in challenging environments.

Request a quote

Tags:

3 Inch Gate Valve

Bronze Gate Valve

MSS SP-80 Gate Valve

Detail Information

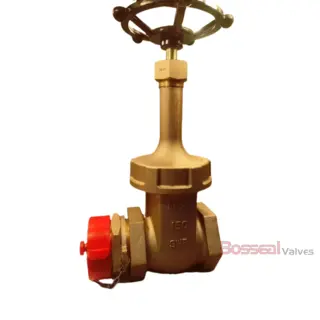

MSS SP-80 Bronze Gate Valve, 200 LB, 3 Inch/DN80, Non Rising Stem.

Valve Description:
1876029 Gate Valve
Bore Type: Standard Bore
Design Standard: MSS SP-80
Structure: Threaded, Union Bonnet
Body Material: ASTM B62 C83600
Nominal Size: 3 Inches, DN80
Nominal Class: Class 200 LB
Operation: Handwheel
Test and Inspection: MSS SP-80
Trim Material: ASTM B62 C83600
End Connection: Threaded ASME B1.20.1
Face to Face: Manufacturer Standard

Key Features:
1. Renewable solid wedges for enhanced durability.
2. Integral seats for improved sealing performance.
3. High-tensile bronze alloy stems for strength and reliability.
4. Each valve undergoes shell and seat pressure testing following MSS SP-80 industry standards.
5. Options for both rising and non-rising stems are available.

Product Range:
Body Material: Bronze ASTM B62 C83600
Pressure Range: Class 125 LB - Class 300 LB
Normal Diameter: 1/4-3 Inch (DN6 – DN80)
Operation: Handwheel
Working Temperature: -20°C to +150°C
End Connection: Threaded
