2PCS Trunnion Mounted Ball Valve, WCB, 3 IN, 150 LB, API 6D

Key Specifications / Features

Model no. : 3BS1RWCB

This 3-inch 150 LB WCB Trunnion Mounted Ball Valve with API 6D, RF, 2pcs Casting body, F6A trim, and RPTFE seat is designed to meet industry standards and provide reliable performance. The valve features a trunnion-mounted design, making it perfect for a range of applications. With its durable construction and high-quality materials, this ball valve is ideal for use in a variety of industries including oil and gas, chemical, and petrochemical. The F6A trim ensures excellent performance and durability, while the RPTFE seat provides reliable sealing to prevent leaks. Whether you need a valve for a new installation or a replacement part, this trunnion-mounted ball valve is an excellent choice.

Detail Information

3 Inch 150 LB WCB Trunnion Mounted Ball Valve, API 6D, RF, 2pcs Casting body, F6A trim, RPTFE Seat

Valve Description:
1811014 Trunnion Mounted Ball Valve 3BS1RWCB
Design Standard: API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 3 Inch
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever
Body Material: ASTM A216 WCB
Trim Material: ASTM A182 F6A, RPTFE Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe (API 607/6FA), Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 24 Inch (DN15 - DN1200)
Pressure range: Class 150 - 900 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

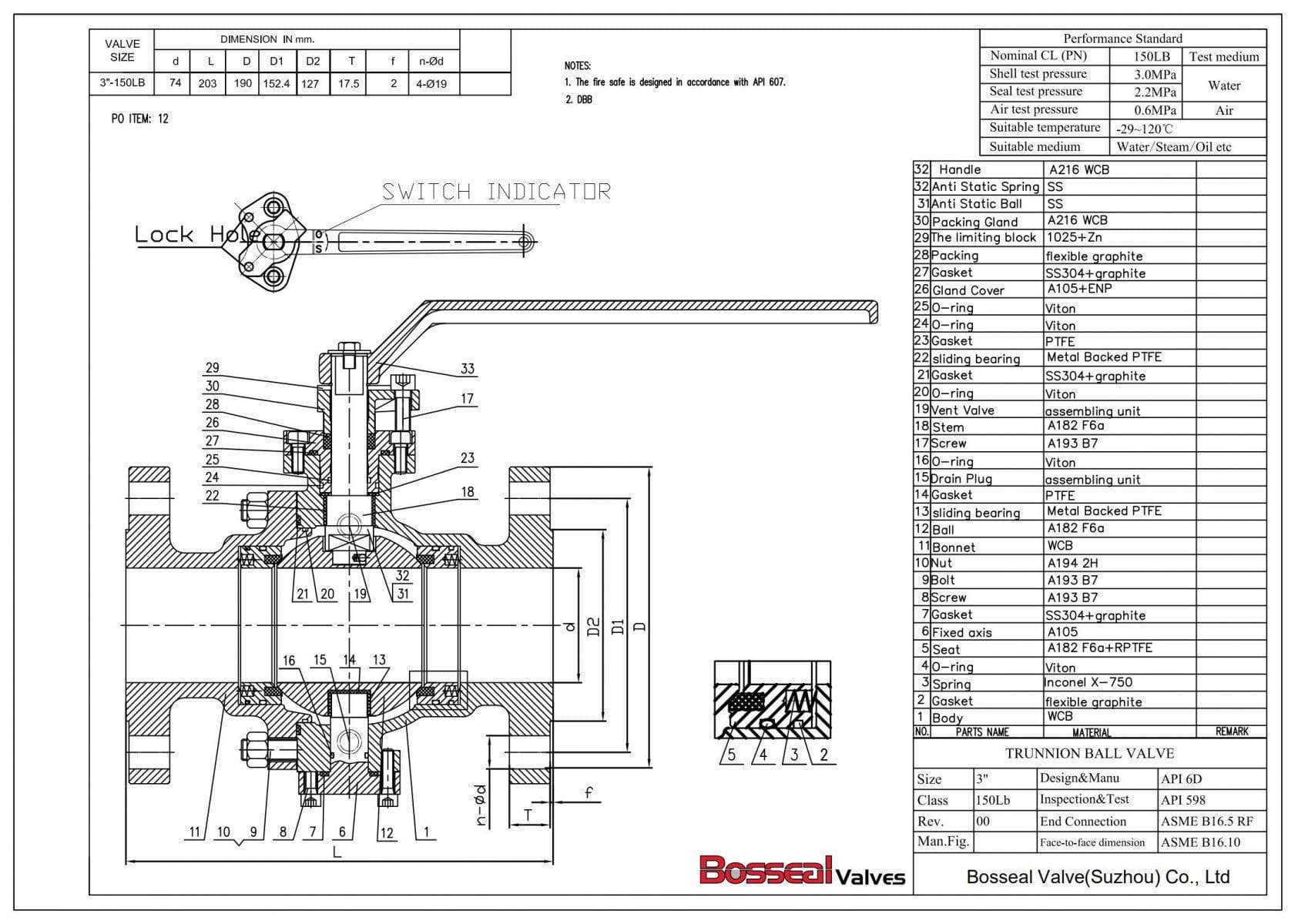

API 6D Trunnion Mounted Ball Valve Tech Drawing
