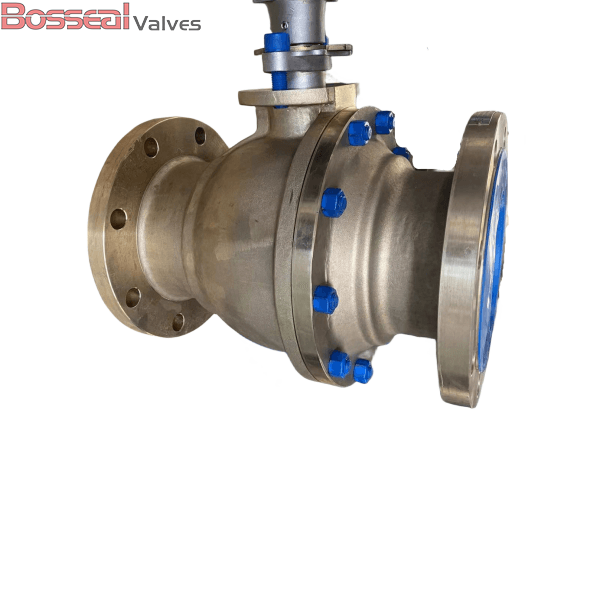

2PC Aluminum Bronze Ball Valve, API 6D, C95800, 12 IN, CL150

Key Specifications / Features

Model no. : BV-187301009

As a trusted aluminum bronze ball valve manufacturer, we provide valves designed to ASME B16.34 standards, featuring an ASTM B148 C95800 body. This 12-inch valve (DN350) is built for Class 150 LB pressure rating and PN20, ensuring reliable performance in demanding industrial applications. It is equipped with a bolted bonnet for secure sealing and a gear operation for smooth and precise control. Known for its durability and corrosion resistance, our ball valves offer long-lasting, high-performance solutions. Count on us for precision-engineered valves that meet your toughest requirements.

Detail Information

Valve Description:
187301009 Aluminum Bronze Ball Valve
Design Standard: ASME B16.34, API 6D, BS 5351
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 14 Inch, DN350
Nominal Class: Class 150 LB, PN20
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Operation: Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminum Bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: RF, FF
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
