2500 LB Gate Valve, Pressure Seal, API 600, 12 IN, A217 C12A

Key Specifications / Features

Model no. : 12GPS25BC12A

Manufactured by a leading Class 2500 LB Gate Valve Maker, this 12-inch valve, designed for PN420 pressure, features a Pressure Seal Bonnet, crafted from ASTM A217 C12A high-temperature alloy steel. With F91 Trim and API 600 compliance, it ensures exceptional performance in demanding environments. Equipped with gear operation and butt weld ends, this valve delivers reliable service in high-pressure applications.


Detail Information

Pressure Seal Gate Valve, API 600, OS&Y, 12 inch, 2500 LB, BW, A217 C12A Body, F91 Trim, Gear Operated

Valve Description:
1821041 Gate Valve 12GPS25BC12A
Design Standard: API 600
Structure: Pressure Seal Bonnet
Nominal size: 12 Inch
Nominal class: 2500 LB
Bore Type: Standard Bore
End Connection: Butt Weld
Operation: Gear
Body Material: ASTM A217 C12A
Trim Material: F91+STL
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, For high temperature

Product Range:
Body material: High Temperature Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +500℃
Operation: Handwheel, Gear, Motor Actuator




Nickname*:
E-mail*:
Rate*:
Comments*:

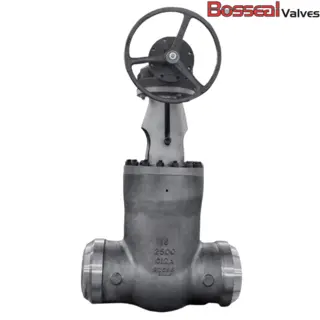

Next: Gear Operated Pressure Seal Gate Valve, 10IN, 2500 LB, C12A
