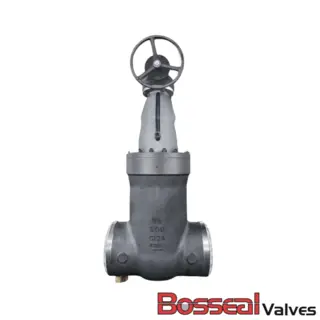

20 Inch Gate Valve, API 600, 900 LB, ASTM A217 C12A, BW

Key Specifications / Features

Model no. : 20GPS9BC12A

Explore our premium 20-inch gate valve, meticulously crafted to industry standards. This valve boasts a DN500 size, suitable for handling high pressures of 900 LB and PN150. Engineered with API 600 compliance, it features a robust pressure seal bonnet ensuring optimal performance. Constructed with an ASTM A217 C12A body and equipped with ASTM A182 F91+STL trim, this valve ensures durability and corrosion resistance. Its OS&Y design and gear operation guarantee ease of use and reliability. Designed for seamless integration with butt weld connections, this gate valve is a must-have for your industrial applications.

Detail Information

Pressure Seal Gate Valve, API 600, OS&Y, 20 inch, 900 LB, BW, A217 C12A Body, F91 Trim, Gear Operated

Valve Description:
1821037 Gate Valve 20GPS9BC12A
Design Standard: API 600
Structure: Pressure Seal Bonnet
Nominal size: 20 Inch
Nominal class: 900 LB
Bore Type: Standard Bore
End Connection: Butt Weld
Operation: Gear
Body Material: ASTM A217 C12A
Trim Material: F91+STL
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, For high temperature

Product Range:
Body material: High Temperature Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +500℃
Operation: Handwheel, Gear, Motor Actuator
