2-1/2 Inch Bronze Gate Valves, MSS SP-80, 150 LB, ASTM B62

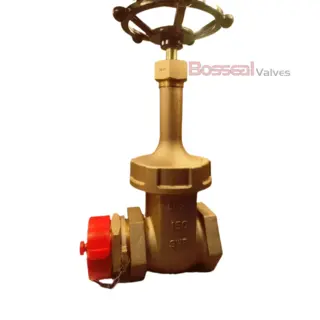

MSS SP-80 Bronze Gate Valve, 150 LB, 2-1/2 Inch/DN65, Non Rising Stem.

Valve Description:
1876018 Gate Valve
Bore Type: Standard Bore
Design Standard: MSS SP-80
Structure: Threaded, Union Bonnet
Body Material: ASTM B62 C83600
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 150 LB
Operation: Handwheel
Test and Inspection: MSS SP-80
Trim Material: ASTM B62 C83600
End Connection: Threaded ASME B1.20.1
Face to Face: Manufacturer Standard

Key Features:
1. Renewable solid wedges for enhanced durability.
2. Integral seats for improved sealing performance.
3. High-tensile bronze alloy stems for strength and reliability.
4. Each valve undergoes shell and seat pressure testing following MSS SP-80 industry standards.
5. Options for both rising and non-rising stems are available.

Product Range:
Body Material: Bronze ASTM B62 C83600
Pressure Range: Class 125 LB - Class 300 LB
Normal Diameter: 1/4-3 Inch (DN6 – DN80)
Operation: Handwheel
Working Temperature: -20°C to +150°C
End Connection: Threaded
