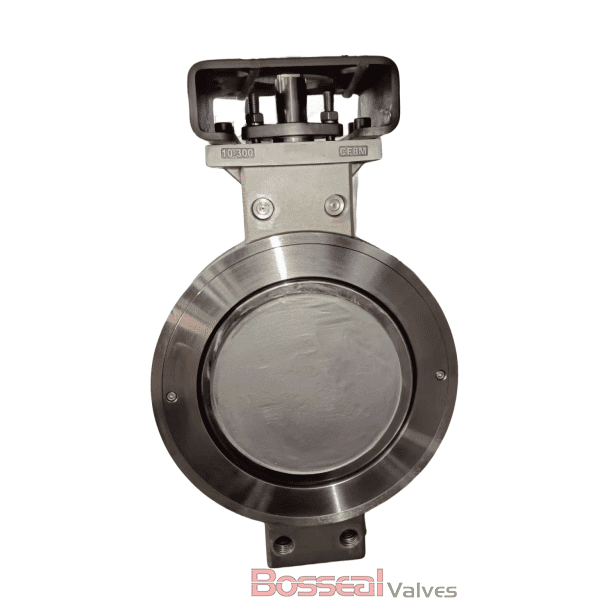

16-inch Double Offset Butterfly Valve, A351 CF8M, CL 300 LB

Key Specifications / Features

Model no. : 1862189

As a manufacturer of RPTFE seated butterfly valves, we offer high-performance solutions designed to meet API 609 Category B and EN 593 standards. Our 16-inch butterfly valve features a CF8M stainless steel body and a 17-4PH stem for enhanced strength and corrosion resistance. With a double offset design and soft RPTFE seat, this valve ensures precise flow control and tight sealing. Rated at Class 300, the valve's wafer end connection allows for easy installation and maintenance, making it ideal for demanding industrial applications requiring reliable performance.

Detail Information

API 609 Category B Butterfly Valve, 16 Inch/DN400, 300 LB, Soft Seat, Wafer End.

Valve Description

1862189 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 16 Inch, DN400
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A351 CF8M, Titanium, ASTM A216 WCB, ASTM A351 CF8, ASTM A890 5A, ASTM A890 4A, ASTM B148 C95800.
Seat: RPTFE, PPL
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Structure: Double Offset, Double Eccentric
End Connection: Wafer

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
