Key Specifications / Features
Discover our high-quality 12-inch 150 LB Ball Valve, designed for optimal performance in industrial applications. This valve features DN300 size, PN20 pressure rating, and is Trunnion Mounted according to BS 5351 and API 6D standards. Crafted from durable ASTM A350 LF2 and ASTM A105N materials, it ensures longevity and reliability. With an RPTFE seat for superior sealing and Gear operation for easy control, this valve is a dependable choice. RF Flanged for seamless integration, it meets stringent industry standards for efficiency and safety.
Detail Information

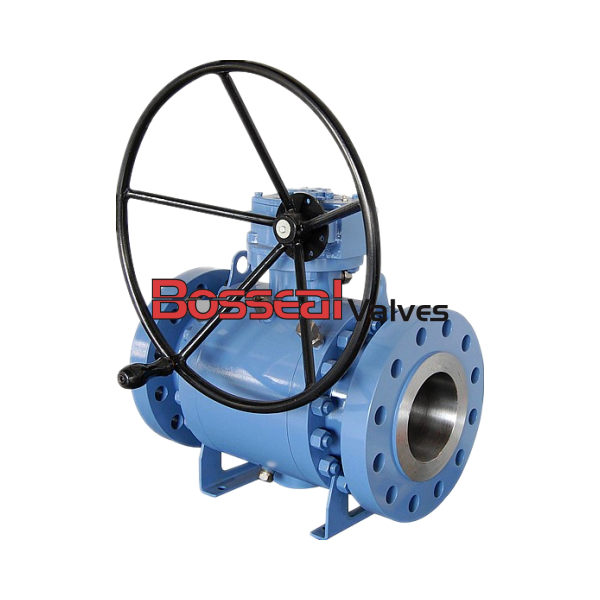

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 12 INCH, 150 LB, RF, RPTFE seat, Gear Operation
Valve Description:
1811078 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 12 Inch
Nominal class: 150 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N, ASTM A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
