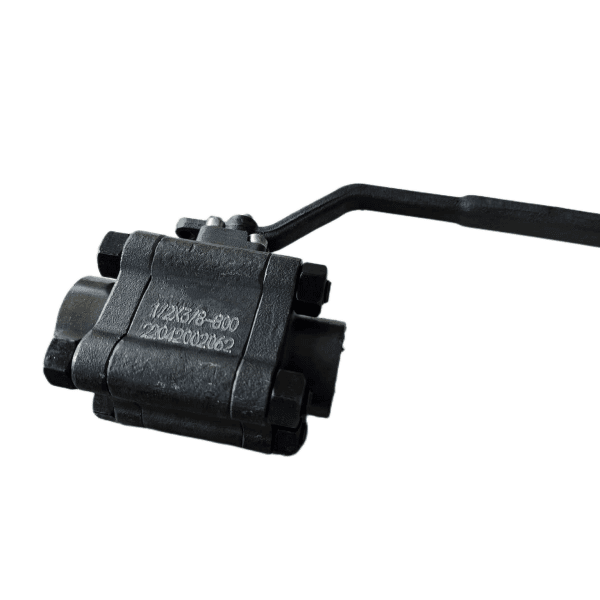

1/2 Inch Floating Ball Valve, CL800, A105N, API 608, 6D, SW X FNPT

Key Specifications / Features

Model no. : 0.5BB8SNA105

Our 1/2 Inch Floating Ball Valve is fabricated to DN15 standards with an 800 LB rating, meeting API 608, ISO 17292, and API 6D specifications. Constructed with an A105N body featuring 316 Trim and RPTFE Seat, it boasts SW X FNPT Threaded End for easy installation. Operated with a lever, it ensures seamless functionality in various applications.


Detail Information

0.5 inch, 800 LB, Floating Ball Valve, SW X FNPT Threaded End, ISO 17292, A105N body with 316 Trim, RPTFE seat and lever operation

Valve Description:
1812051 Floating Ball Valve 0.5BB8SNA105
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat, Yoke for Limit Switch
Nominal size: 1/2 Inch, DN15
Nominal class: 800 LB
Bore Type: Full Bore
End Connection: FNPT X SW
Operation: Lever Lockable
Body Material: ASTM A105N
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator



Nickname*:
E-mail*:
Rate*:
Comments*:

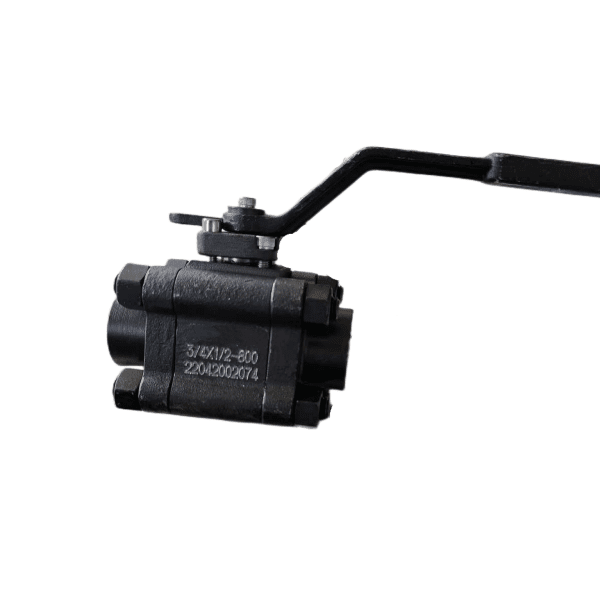

Next: 3/4 Inch Ball Valve, 800 LB, A105N, API 608, 6D, ISO 17292
